Product information House equipment

Close

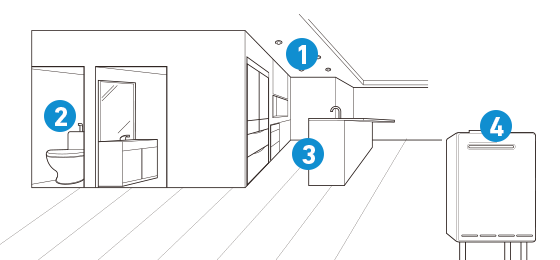

Selected application
Example
  • イラスト
  • テキスト

Discrete products (Recommendation)

Potentiometers Rotary Potentiometers

Model Specifications / 3D Features Size Number of resistance elements Mounting height Mounting style Bushing / Sleeve Length of lever / type Center detent Total resistance Resistance taper Endurance

VB16Z

16mm size Rotary potentiometers with a broad range of resistances and tapers.

16mm

Single unit

-

Horizontal type

With bushing

15F, 20F, 25F, 30F and 35F available.
KC type and so on.

With / Without

5kΩ, 10kΩ, 20kΩ, 25kΩ, 50kΩ, 100kΩ, 200kΩ, 250kΩ, 500kΩ, 1MΩ

A type, B type and C type

10,000 cycles

There is no product that corresponds to the specified application.

Switches Push Switches

Model Specifications / 3D Features Size Mounting style Number of circuits Endurance

SF06D

For Automotive applications. Compact, smooth activation and 2.5mm stroke / 1.5mm lock. Non-locking type is available.

6mm

Vertical type

2 circuits, D.P.D.T

50,000 times

There is no product that corresponds to the specified application.

Switches Power Switches

Model Specifications / 3D Features Size Mounting style Number of circuits Endurance

VB16ZS

Potentiometers with rotary AC power switch.

16mm

Horizontal type

-

15,000 cycles
(Sliding portion)
10,000 cycles
(Switch portion)

There is no product that corresponds to the specified application.

Fixed resistors Current Detection Cement-Filled Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGB2MJ

Incombustible, insulated metal plate resistor. Will not start a fire when overloaded. It is suitable for current detection due to its low resistance. Surface mount.

2W

10mΩ - 50mΩ

±10%

There is no product that corresponds to the specified application.

Fixed resistors Cement-Filled Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGG□

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

2W, 3W, 5W, 7W, 10W, 20W

0.22Ω - 2.7kΩ (E12)

±5%, ±10%

RGGT□

Metal oxide film resistor with incombustible insulation. Will not start a fire when overloaded. High resistance type.

7W, 10W

10Ω - 120kΩ (E12)

±2%, ±3%, ±5%, ±10%

RGB□L

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

2W, 3W, 5W, 7W, 10W, 15W, 20W

0.22Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□PS/PW

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

5W, 7W, 10W, 15W, 20W

0.27Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□HS/HV

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

10W, 15W, 20W, 30W, 40W

1Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□FS/FV

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded. Faston terminal allows electrical connection without soldering.

10W, 15W, 20W, 30W, 40W

1Ω - 2.7kΩ (E12)

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Surge Absorbers

Model Specifications / 3D Features Type

DSAR

Reduce the circuit damage by the rushing into current such as inducement thunders.
UL certified.

Vertical / horizontal

There is no product that corresponds to the specified application.

Fixed resistors Thermal Fuse Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGD(U)□(M)

Integrated unit of winding resistance and thermal fuse. By virtue of the built-in thermal fuse being adjacent to the resistor element, the dispersion in fusing characteristics has been minimized and assures a high stability performance. Excels in surge withstanding capabilities. UL certified product.

1.4 - 5.2W

0.22Ω - 1.8kΩ

±5%, ±10%

There is no product that corresponds to the specified application.

Antifreeze-Heaters Antifreeze-Heaters

Model Specifications / 3D Features Specifications / Shape

RGB(HU)

In preparation of the freezing of hot water in water heaters, water supply facilities, and other equipment during winter, it is possible to selectively allocate areas requiring heat retention. Moreover, in the final process of equipment production, it can be installed easily and safely by using a clamp, etc. Man-hours are also reduced.

Compatible with custom products

There is no product that corresponds to the specified application.

Antifreeze-Heaters Sparking plug and Flame rod

Model Specifications / 3D Features Specifications / Shape

PSP

Sparking plug / flame rod for gas and oil equipment.

Compatible with custom products

There is no product that corresponds to the specified application.
