Product information Automotive

Close

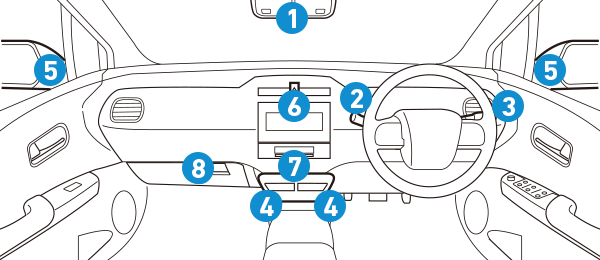

Selected application
Example
  • イラスト
  • テキスト
  • テキスト

Customized products (Example)

Category Example Features Specifications / Shape

Sensor switch unit

Side mirror sensor

Incorporates two sliding position sensors to detect the angle of side mirrors.

Customized products

Control switch unit

Light leveling switch

Developed using an integrated circuit board with printed resistors. Use of two-material molding technology enables the knob digits to be illuminated if required. Designed to facilitate smooth operation.

Customized products

Resistive board

HVAC actuator

Printing resistors directly onto rigid circuit boards means we are able to achieve linearity of ±1%. We are able to avoid using gold plating through the use of water-soluble flux. A strip coat finishing is also available upon request.

Customized products

There is no product that corresponds to the specified application.

Discrete products (Recommendation)

Resistance sensors Slide Potentiometers

Model Specifications / 3D Features Movement amount Operation direction Length of lever / type Endurance Linearity

LSJ12

For a wide variety of VR applications. Slide sensor with a light and smooth sliding feel.

12mm

Vertical type

-

100,000 cycles

±1.0%

There is no product that corresponds to the specified application.

Potentiometers Rotary Potentiometers

Model Specifications / 3D Features Size Number of resistance elements Mounting height Mounting style Bushing / Sleeve Length of lever / type Center detent Total resistance Resistance taper Endurance

XVB93

Smooth rotary feeling due to the use of film suitable for automotive application. Rotary, push, push lock SW.

9mm

Single unit - multiple units

-

Horizontal type

-

Flat shaft, 18 tooth knurls

With / Without

20kΩ, 50kΩ, 100kΩ

1B, 3B, 15A

-

V09L

9mm size rotary potentiometer with substrate resistance specification.

9mm

Single unit

-

Horizontal type / Vertical type

-

Without knob

With / Without

1kΩ-500kΩ (taper B),
5kΩ-250kΩ (taper 15A)

1B, 15A

-

V105

10mm size rotary potentiometer.
Other than V108, rotary SW is available.

10mm

Single unit

-

Vertical type

-

Without knob

Without

1kΩ-500kΩ (taper B),
1kΩ-500kΩ (taper 15A)

1B, 15A

-

There is no product that corresponds to the specified application.

Potentiometers Slide Potentiometers

Model Specifications / 3D Features Movement amount Number of resistance elements Mounting style Length of lever / type Center detent Total resistance Resistance taper Endurance

VJ13/23

Entire series is standardized at 9mm wide. Excellent slide operation feeling. Can be compatible with auto dip.

Standard type
15, 20, 30, 45, 60mm

Single unit / Dual unit

Vertical type

10C, 15C, 5B, 15B, 10CP, 15CP

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

B, 10A, 15A, 15C

15,000 cycles

There is no product that corresponds to the specified application.

Trimmer potentiometers Chip Trimmer Potentiometers

Model Specifications / 3D Features Size Adjustment method Stopper Total resistance

TMC3K5

For cars. Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

3mm

Manually operated

Without

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

There is no product that corresponds to the specified application.

Encoders Rotary Encoders

Model Specifications / 3D Features Size Mounting style Number of positions Code

XRE0127

Compact, high performance signal switch. Smooth rotation feeling due to the use of film. Withstand ambient temperature of 85℃.

12mm

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

XRE0128

Compact, high performance signal switch. Smooth rotation feeling due to the use of film. Withstand ambient temperature of 85℃.

12mm / with push switch

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

There is no product that corresponds to the specified application.

Switches Push Switches

Model Specifications / 3D Features Size Mounting style Number of circuits Endurance

SF06C

For Automotive applications. Compact, smooth activation and 2.5mm stroke / 1.5mm lock. Non-locking type is available. Reflow soldering type.

6mm

Vertical type

2 circuits, D.P.D.T

50,000 times

SF06D

For Automotive applications. Compact, smooth activation and 2.5mm stroke / 1.5mm lock. Non-locking type is available.

6mm

Vertical type

2 circuits, D.P.D.T

50,000 times

There is no product that corresponds to the specified application.

Fixed resistors Metal Oxide Film Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RSM

Incombustible paint insulation type. Do not burn due to self heating or external flame.

0.5W, 1W, 2W, 3W

0.2Ω - 120kΩ (E24Series)

±5%

There is no product that corresponds to the specified application.
