Selected application
Example

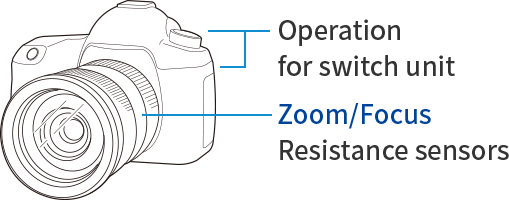

  • Camera

    カメラ

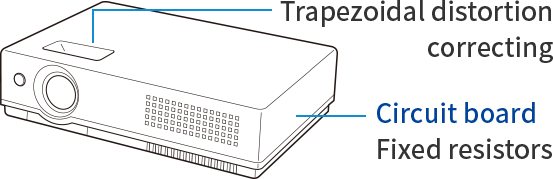

  • Projector

    プロジェクター

Customized products (Example)

Category Example Features Specifications / Shape

Control switch unit

Digital camera top operation block

We make circuits for components such as the release button, mode switch, and zoom lever, etc. by printing onto film, and are able to achieve our client's design requirements.

Customized products

Curve slide sensor

Rotary sensor for camera lens (body) component

We are able to place potentiometers on curved surfaces using our unique curved surface resistance position sensor film technology. Our potentiometers can therefore be used as high-resolution position sensors as can sense position directly when cylindrical objects such as camera lenses are in use.

Customized products

Control switch unit

Television

We use decorative technologies such as resin molding and pad printing, as well as assembly technology, to piece the product together and deliver it semi-complete; resulting in less work for our clients. This also helps maintain overall product quality.

Customized products

Control switch unit

Video camera

Circuits in components such as the start/stop button, zoom, and photo button, etc. are all made using film and created using unique NOBLE technologies. Simultaneous manufacturing of both interior and exterior components enables us to deliver high quality, tactile units.

Customized products

There is no product that corresponds to the specified application.

Discrete products (Recommendation)

Resistance sensors Curve Slide Position Sensors

Model Specifications / 3D Features Type Endurance Linearity

XCS

A thin potentiometer that slides along a curved surface. Fast responsiveness with a light sliding feeling.

Curved surface (Standard type is available)

50,000 cycles

±1.0%

There is no product that corresponds to the specified application.

Potentiometers Rotary Potentiometers

Model Specifications / 3D Features Size Number of resistance elements Mounting height Mounting style Bushing / Sleeve Length of lever / type Center detent Total resistance Resistance taper Endurance

XV092

9mm size snap-in rotary potentiometer. Smooth rotation feeling due to the use of film.

9mm

Single unit

6.5/10.0/12.5mm

Horizontal type / Vertical type

With / Without sleeve

15F, 20F, 25F, 30F, 15U, 20U, 25U

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

1B, 15A, 15C

10,000 cycles

XV012/XVB12

12mm size snap-in rotary potentiometer. Smooth rotation feeling due to the use of film.

12mm

Single unit / Dual unit

10.0/12.5mm

Horizontal type / Vertical type

Bushing and sleeve
With / Without

15F, 20F, 25F, 30F

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

1B, 3B, 15A, 15C

Single unit: 15,000 cycles
Dual unit: 10,000 cycles

XV014/XVB14

14mm size snap-in rotary potentiometer. Smooth rotation feeling due to the use of film.

14mm

Dual unit

10.0/12.5mm

Horizontal type / Vertical type

With / Without bushing

15F, 20F, 22.5F, 25F, 27.5F, 30F

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

1B, 3B, 15A, 15C, 3BM, (15AM, 15CM)

15,000 cycles

XVB93

Smooth rotary feeling due to the use of film suitable for automotive application. Rotary, push, push lock SW.

9mm

Single unit - multiple units

-

Horizontal type

-

Flat shaft, 18 tooth knurls

With / Without

20kΩ, 50kΩ, 100kΩ

1B, 3B, 15A

-

There is no product that corresponds to the specified application.

Potentiometers Slide Potentiometers

Model Specifications / 3D Features Movement amount Number of resistance elements Mounting style Length of lever / type Center detent Total resistance Resistance taper Endurance

VJ13/23

Entire series is standardized at 9mm wide. Excellent slide operation feeling. Can be compatible with auto dip.

Standard type
15, 20, 30, 45, 60mm

Single unit / Dual unit

Vertical type

10C, 15C, 5B, 15B, 10CP, 15CP

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

B, 10A, 15A, 15C

15,000 cycles

There is no product that corresponds to the specified application.

Trimmer potentiometers Chip Trimmer Potentiometers

Model Specifications / 3D Features Size Adjustment method Stopper Total resistance

TMC2K2J

Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

2mm

-

Without

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

TMC3K

Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

3mm

Manually operated

Without

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

TMC3KJ

Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

3mm

Automatic

Without

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

TMC3K4J

Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

3mm

Automatic

With

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

There is no product that corresponds to the specified application.

Trimmer potentiometers Trimmer Potentiometers

Model Specifications / 3D Features Size Mounting method Total resistance

ZRV6K PV/PH

With a printed carbon resistance element and for a wide variety of markets and applications.

6mm

Vertical / horizontal

100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 30kΩ, 50kΩ, 100kΩ, 200kΩ

VM5CK-PV

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

5mm

Vertical type

100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

VM6CK-PV(1S)/PH(1S)

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

6mm

Vertical / horizontal

100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

TM64K2(PV)/(PH)

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

6mm

Vertical / horizontal

100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

TM8K V2/H1

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

8mm

Vertical / horizontal

200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

TM10K(PV)/(PH)

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

10mm

Vertical / horizontal

100Ω, 220Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

There is no product that corresponds to the specified application.

Encoders Rotary Encoders

Model Specifications / 3D Features Size Mounting style Number of positions Code

XRE0125

Compact, high performance signal switch. Smooth rotation feeling due to the use of film.

12mm

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

XRE0126

Compact, high performance signal switch. Smooth rotation feeling due to the use of film.

12mm / with push switch

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

REB16

Compact, high performance signal switch. With Push SW included.

16mm

Vertical type

24 pulses / 360°

INA, INB (2Bits)

There is no product that corresponds to the specified application.

Fixed resistors Metal Oxide Film Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RNM

Incombustible paint insulation type metal film resistor. Do not burn due to self heating or external flame. Low resistance item.

0.5W, 1W, 2W, 3W

0.22Ω - 9.1Ω

±5%, ±10%

RSM

Incombustible paint insulation type. Do not burn due to self heating or external flame.

0.5W, 1W, 2W, 3W

0.2Ω - 120kΩ (E24Series)

±5%

RSM2FB ES

Miniaturized, incombustible paint insulation type. Do not burn due to self heating or external flame. Surface mount.

2W

0.2Ω - 100kΩ (E24Series)

±5%

RSS

Self-standing type with snap-in terminal installed. Improvement of space factor with lightweight and compact type. The inductance component is compact, with excellent high frequency characteristics.

3W, 5W

0.22 to below 10 (E12 Series) 10Ω - 100kΩ(E24Series)

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Current Detection Cement-Filled Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGC□

Incombustible, insulated metal plate resistor. Will not start a fire when overloaded.

2W, 3W, 5W

5mΩ - 1Ω

±2%, ±3%, ±5%, ±10%

RGC□□

Incombustible, insulated metal plate resistor. Will not start a fire when overloaded.

2+2W, 3+3W, 5+5W, 7+7W

10mΩ - 1.0Ω

±2%, ±3%, ±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Cement-Filled Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGB□L

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

2W, 3W, 5W, 7W, 10W, 15W, 20W

0.22Ω - 2.7kΩ (E12)

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Fusing Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RNF□FB

It is a coated metal film type and usually functions as a resistor. During abnormal overload, it fuses to protect the circuit. Compact and lightweight. Excellent safety due to the use of incombustible paint.

0.25W, 0.5W,
1W, 2W

0.22Ω - 1kΩ
(E24 Series)

±5%, ±10%

RNF□FD

It is a metallic film type enclosed in a magnetic case and functions normally as a resistor. During abnormal overload, it fuses to protect the circuit. Reduces fuming, sound production, smell during fusing operation. Strong insulation properties.

0.5W, 1W

0.22Ω - 1kΩ
(E24 Series)

±5%, ±10%

There is no product that corresponds to the specified application.

Consultation on products and inquiries
Contact us
