Product information Home appliance

Close
Selected application
Example
  • Rice cooker/Fan heater

    炊飯器/ファンヒーター

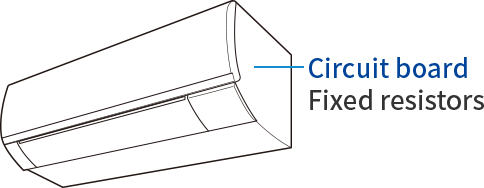

  • Air conditioner

    エアコン

Customized products (Example)

Category Example Features Specifications / Shape

Control switch unit

Fan heater

We use assembly technology to piece the product together and deliver it semi-complete, resulting in less work for our clients. This also helps maintain overall product quality.

Customized products

Control switch unit

Refrigerator

We use 9 mm size of NOBLE potentiometers and deliver products semi-complete, resulting in less work for our clients.

Customized products

Touch sensor

Rice cooker

Use of thin film circuits makes it possible to create capacitive touch sensors.

Customized products

There is no product that corresponds to the specified application.

Discrete products (Recommendation)

Resistance sensors Rotary Potentiometers

Model Specifications / 3D Features Size Mounting style Shaft Endurance Linearity

ZRS07PVD

By using a molded resin substrate, a higher accuracy linearity and improved reflow resistance are achieved as compared to conventional products.

7mm

Vertical type

Through type

500,000 cycles

±2.0%

There is no product that corresponds to the specified application.

Potentiometers Rotary Potentiometers

Model Specifications / 3D Features Size Number of resistance elements Mounting height Mounting style Bushing / Sleeve Length of lever / type Center detent Total resistance Resistance taper Endurance

XV092

9mm size snap-in rotary potentiometer. Smooth rotation feeling due to the use of film.

9mm

Single unit

6.5/10.0/12.5mm

Horizontal type / Vertical type

With / Without sleeve

15F, 20F, 25F, 30F, 15U, 20U, 25U

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

1B, 15A, 15C

10,000 cycles

There is no product that corresponds to the specified application.

Potentiometers Slide Potentiometers

Model Specifications / 3D Features Movement amount Number of resistance elements Mounting style Length of lever / type Center detent Total resistance Resistance taper Endurance

VJ13/23

Entire series is standardized at 9mm wide. Excellent slide operation feeling. Can be compatible with auto dip.

Standard type
15, 20, 30, 45, 60mm

Single unit / Dual unit

Vertical type

10C, 15C, 5B, 15B, 10CP, 15CP

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

B, 10A, 15A, 15C

15,000 cycles

There is no product that corresponds to the specified application.

Encoders Rotary Encoders

Model Specifications / 3D Features Size Mounting style Number of positions Code

XRE0125

Compact, high performance signal switch. Smooth rotation feeling due to the use of film.

12mm

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

XRE0126

Compact, high performance signal switch. Smooth rotation feeling due to the use of film.

12mm / with push switch

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

REB16

Compact, high performance signal switch. With Push SW included.

16mm

Vertical type

24 pulses / 360°

INA, INB (2Bits)

There is no product that corresponds to the specified application.

Switches Push Switches

Model Specifications / 3D Features Size Mounting style Number of circuits Endurance

SF06C

For Automotive applications. Compact, smooth activation and 2.5mm stroke / 1.5mm lock. Non-locking type is available. Reflow soldering type.

6mm

Vertical type

2 circuits, D.P.D.T

50,000 times

SF06D

For Automotive applications. Compact, smooth activation and 2.5mm stroke / 1.5mm lock. Non-locking type is available.

6mm

Vertical type

2 circuits, D.P.D.T

50,000 times

There is no product that corresponds to the specified application.

Fixed resistors Metal Oxide Film Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RNM

Incombustible paint insulation type metal film resistor. Do not burn due to self heating or external flame. Low resistance item.

0.5W, 1W, 2W, 3W

0.22Ω - 9.1Ω

±5%, ±10%

RSM

Incombustible paint insulation type. Do not burn due to self heating or external flame.

0.5W, 1W, 2W, 3W

0.2Ω - 120kΩ (E24Series)
Below 10Ω is a metal film resistor, RNM.

±5%

RSM2FB ES

Miniaturized, incombustible paint insulation type. Do not burn due to self heating or external flame. Surface mount.

2W

0.2Ω - 100kΩ (E24Series)
Below 10Ω is a metal film resistor, RNM.

±5%

RSS

Self-standing type with snap-in terminal installed. Improvement of space factor with lightweight and compact type. The inductance component is compact, with excellent high frequency characteristics.

3W, 5W

0.22 to below 10 (E12 Series) 10Ω - 100kΩ(E24Series)
3W is a metal film resistor, RNS in case of 1Ω or less.

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Current Detection Cement-Filled Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGC□

Incombustible, insulated metal plate resistor. Will not start a fire when overloaded.

2W, 3W, 5W

5mΩ - 1Ω

±2%, ±3%, ±5%, ±10%

RGC□□

Incombustible, insulated metal plate resistor. Will not start a fire when overloaded.

2+2W, 3+3W, 5+5W, 7+7W

10mΩ - 1.0Ω

±2%, ±3%, ±5%, ±10%

RGCH

Incombustible, insulated metal plate resistor. No adhesive required for low-height type vibration.

2W, 5W

5mΩ - 1Ω

±2%, ±5%, ±10%

RGC□Y

Incombustible, insulated metal plate resistor. It is a case with legs that stands straight to a substrate.

2W, 5W, 10W

5mΩ - 1Ω,
10mΩ - 2Ω

±5%, ±10%

RGB2MJ

Incombustible, insulated metal plate resistor. Will not start a fire when overloaded. It is suitable for current detection due to its low resistance. Surface mount.

2W

10mΩ - 50mΩ

±10%

RGG7Y

Incombustible, insulated metal plate resistor. High accuracy current detection with four-terminal structure. Resistance temperature count of 100 ppm/℃ or less. Will not start a fire when overloaded.

7W

3, 5, 7, 10mΩ

±5%, ±2%

There is no product that corresponds to the specified application.

Fixed resistors Cement-Filled Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGG□

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

2W, 3W, 5W, 7W, 10W, 20W

0.22Ω - 2.7kΩ (E12)

±5%, ±10%

RGGT□

Metal oxide film resistor with incombustible insulation. Will not start a fire when overloaded. High resistance type.

7W, 10W

10Ω - 120kΩ (E12)

±2%, ±3%, ±5%, ±10%

RGB□L

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

2W, 3W, 5W, 7W, 10W, 15W, 20W

0.22Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□PS/PW

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

5W, 7W, 10W, 15W, 20W

0.27Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□HS/HV

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

10W, 15W, 20W, 30W, 40W

1Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□FS/FV

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded. Faston terminal allows electrical connection without soldering.

10W, 15W, 20W, 30W, 40W

1Ω - 2.7kΩ (E12)

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Fusing Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RNF□FB

It is a coated metal film type and usually functions as a resistor. During abnormal overload, it fuses to protect the circuit. Compact and lightweight. Excellent safety due to the use of incombustible paint.

0.25W, 0.5W,
1W, 2W

0.22Ω - 1kΩ
(E24 Series)

±5%, ±10%

RNF□FD

It is a metallic film type enclosed in a magnetic case and functions normally as a resistor. During abnormal overload, it fuses to protect the circuit. Reduces fuming, sound production, smell during fusing operation. Strong insulation properties.

0.5W, 1W

0.22Ω - 1kΩ
(E24 Series)

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Surge Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RMH

With the metal oxide membrane, the circuit damage by the rushing into current such as inducement thunders is reduced. UL, BSI, VDE certified.

0.25W, 0.5W, 1W

56kΩ - 33MΩ
(E12 Series)

±5%

RKF

Wire wound + incombustible paint type. It can be used as a lightning surge and inrush prevention resistance.

3W, 5W

20Ω

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Surge Absorbers

Model Specifications / 3D Features Type

DSAR

Reduce the circuit damage by the rushing into current such as inducement thunders.
UL certified.

Vertical / horizontal

There is no product that corresponds to the specified application.

Fixed resistors Thermal Fuse Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGD(U)□(M)

Integrated unit of winding resistance and thermal fuse. By virtue of the built-in thermal fuse being adjacent to the resistor element, the dispersion in fusing characteristics has been minimized and assures a high stability performance. Excels in surge withstanding capabilities. UL certified product.

1.4 - 5.2W

0.22Ω - 1.8kΩ

±5%, ±10%

There is no product that corresponds to the specified application.

Antifreeze-Heaters Sparking plug and Flame rod

Model Specifications / 3D Features Specifications / Shape

PSP

Sparking plug / flame rod for gas and oil equipment.

Compatible with custom products

There is no product that corresponds to the specified application.
