Product information Musical instrument/Acoustic equipment

Close
Selected application
Example

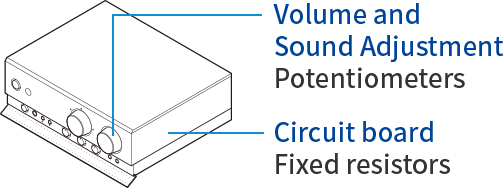

  • Amplifier

    アンプ

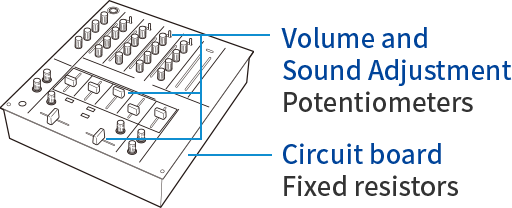

  • Mixer

    ミキサー

Discrete products (Recommendation)

Potentiometers Rotary Potentiometers

Model Specifications / 3D Features Size Number of resistance elements Mounting height Mounting style Bushing / Sleeve Length of lever / type Center detent Total resistance Resistance taper Endurance

XV092

9mm size snap-in rotary potentiometer. Smooth rotation feeling due to the use of film.

9mm

Single unit

6.5/10.0/12.5mm

Horizontal type / Vertical type

With / Without sleeve

15F, 20F, 25F, 30F, 15U, 20U, 25U

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

1B, 15A, 15C

10,000 cycles

XV012/XVB12

12mm size snap-in rotary potentiometer. Smooth rotation feeling due to the use of film.

12mm

Single unit / Dual unit

10.0/12.5mm

Horizontal type / Vertical type

Bushing and sleeve
With / Without

15F, 20F, 25F, 30F

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

1B, 3B, 15A, 15C

Single unit: 15,000 cycles
Dual unit: 10,000 cycles

XV014/XVB14

14mm size snap-in rotary potentiometer. Smooth rotation feeling due to the use of film.

14mm

Dual unit

10.0/12.5mm

Horizontal type / Vertical type

With / Without bushing

15F, 20F, 22.5F, 25F, 27.5F, 30F

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

1B, 3B, 15A, 15C, 3BM, (15AM, 15CM)

15,000 cycles

XVB93

Smooth rotary feeling due to the use of film suitable for automotive application. Rotary, push, push lock SW.

9mm

Single unit - multiple units

-

Horizontal type

-

Flat shaft, 18 tooth knurls

With / Without

20kΩ, 50kΩ, 100kΩ

1B, 3B, 15A

-

VB16Z

16mm size Rotary potentiometers with a broad range of resistances and tapers.

16mm

Single unit

-

Horizontal type

With bushing

15F, 20F, 25F, 30F and 35F available.
KC type and so on.

With / Without

5kΩ, 10kΩ, 20kΩ, 25kΩ, 50kΩ, 100kΩ, 200kΩ, 250kΩ, 500kΩ, 1MΩ

A type, B type and C type

10,000 cycles

VB16ZS (SL123)

16mm size Rotary potentiometers with a broad range of resistances and tapers. With Pull-Push switch.

16mm

Single unit

-

Horizontal type

With bushing

15F, 20F, 25F, 30F and 35F available.
KC type and so on.

With / Without

5kΩ, 10kΩ, 20kΩ, 25kΩ, 50kΩ, 100kΩ, 200kΩ, 250kΩ, 500kΩ, 1MΩ

A type, B type and C type

10,000 cycles

There is no product that corresponds to the specified application.

Potentiometers Slide Potentiometers

Model Specifications / 3D Features Movement amount Number of resistance elements Mounting style Length of lever / type Center detent Total resistance Resistance taper Endurance

XVJ45/60/100

Entire series is standardized at 9mm wide. Excellent slide operation feeling. Can be compatible with auto dip.

45mm, 60mm and 100mm

Singe unit (R2 side dummy) / Dual unit

Vertical type

15C

45mm:With / Without
60/100mm:Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

1B, 3B, 15A, 15C, Center Tap 3BM, 15AM (XVJ45 Only)

15,000 cycles / 30,000 cycles

There is no product that corresponds to the specified application.

Encoders Rotary Encoders

Model Specifications / 3D Features Size Mounting style Number of positions Code

XRE0125

Compact, high performance signal switch. Smooth rotation feeling due to the use of film.

12mm

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

XRE0126

Compact, high performance signal switch. Smooth rotation feeling due to the use of film.

12mm / with push switch

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

REB16

Compact, high performance signal switch. With Push SW included.

16mm

Vertical type

24 pulses / 360°

INA, INB (2Bits)

There is no product that corresponds to the specified application.

Switches Push Switches

Model Specifications / 3D Features Size Mounting style Number of circuits Endurance

SF06C

For Automotive applications. Compact, smooth activation and 2.5mm stroke / 1.5mm lock. Non-locking type is available. Reflow soldering type.

6mm

Vertical type

2 circuits, D.P.D.T

50,000 times

SF06D

For Automotive applications. Compact, smooth activation and 2.5mm stroke / 1.5mm lock. Non-locking type is available.

6mm

Vertical type

2 circuits, D.P.D.T

50,000 times

There is no product that corresponds to the specified application.

Switches Power Switches

Model Specifications / 3D Features Size Mounting style Number of circuits Endurance

VB16ZS

Potentiometers with rotary AC power switch.

16mm

Horizontal type

-

15,000 cycles
(Sliding portion)
10,000 cycles
(Switch portion)

There is no product that corresponds to the specified application.

Fixed resistors Cement-Filled Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGG□

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

2W, 3W, 5W, 7W, 10W, 20W

0.22Ω - 2.7kΩ (E12)

±5%, ±10%

RGGT□

Metal oxide film resistor with incombustible insulation. Will not start a fire when overloaded. High resistance type.

7W, 10W

10Ω - 120kΩ (E12)

±2%, ±3%, ±5%, ±10%

RGB□L

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

2W, 3W, 5W, 7W, 10W, 15W, 20W

0.22Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□PS/PW

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

5W, 7W, 10W, 15W, 20W

0.27Ω - 2.7kΩ (E12)

±5%, ±10%

There is no product that corresponds to the specified application.
