Product information Office supply/Industrial equipment

Close
Selected application
Example

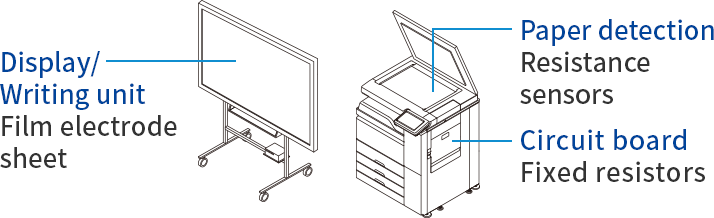

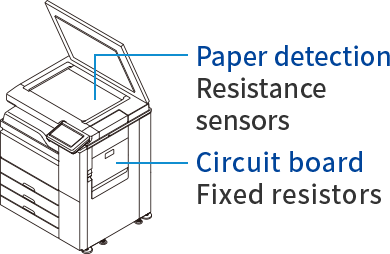

  • Electronic blackboard/Copier

    コントローラー

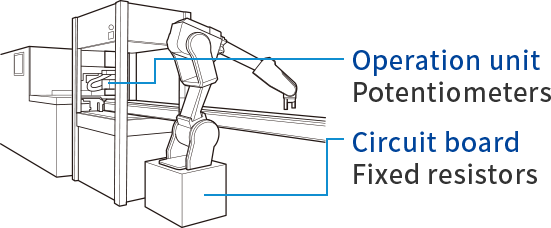

  • Industrial equipment

    トイロボット

Customized products (Example)

Category Example Features Specifications / Shape

Flexible printed board

Projector

LEDs are positioned on film using low-temperature solder mounting technology. Building the switch unit simultaneously allows us to offer our clients compact units that still light up incredibly well. This technology also gives our customers more freedom in product design and makes assembling the product much easier.

Customized products

Flexible printed board

Voice recorder

Printing circuits on PET film means parts will be thin and lightweight. This contributes to a much more compact and lighter product overall.

Customized products

Flexible printed board

Electronic blackboard

We create mutually capacitive static electricity touch sheets by printing silver tracks on both sides of a PET sheet. We are also able to print these to dimensions of 2m x 1.5m using a large-scale printer.

Customized products

There is no product that corresponds to the specified application.

Discrete products (Recommendation)

Resistance sensors Rotary Potentiometers

Model Specifications / 3D Features Size Mounting style Shaft Endurance Linearity

XRS

Body is screwed on, Connector Connection Type. Rotational angle: Endless

-

Horizontal type

Through type

500,000 cycles

±2.0%

There is no product that corresponds to the specified application.

Resistance sensors Slide Potentiometers

Model Specifications / 3D Features Movement amount Operation direction Length of lever / type Endurance Linearity

XLS

Slim type slide potentiometer. Fast responsiveness with a light sliding feeling. Compared with optical types, the influence of external noise is small.

32mm

Vertical type

-

30,000 cycles

±1.0%, ±0.5%

There is no product that corresponds to the specified application.

Potentiometers Rotary Potentiometers

Model Specifications / 3D Features Size Number of resistance elements Mounting height Mounting style Bushing / Sleeve Length of lever / type Center detent Total resistance Resistance taper Endurance

V09L

9mm size rotary potentiometer with substrate resistance specification.

9mm

Single unit

-

Horizontal type / Vertical type

-

Without knob

With / Without

1kΩ-500kΩ (taper B),
5kΩ-250kΩ (taper 15A)

1B, 15A

-

VB16Z

16mm size Rotary potentiometers with a broad range of resistances and tapers.

16mm

Single unit

-

Horizontal type

With bushing

15F, 20F, 25F, 30F and 35F available.
KC type and so on.

With / Without

5kΩ, 10kΩ, 20kΩ, 25kΩ, 50kΩ, 100kΩ, 200kΩ, 250kΩ, 500kΩ, 1MΩ

A type, B type and C type

10,000 cycles

RV16/RV24

High reliability volume for precision instruments. Sealed structure with excellent weather resistance.

16mm, 24mm

Single unit

-

Vertical type

Without

10S, 15S (RV16), 15S, 20S (RV24)

Without

100Ω-1MΩ (taper B),
500Ω-1MΩ (other than B)

1B, 15A, 15C

-

There is no product that corresponds to the specified application.

Potentiometers Slide Potentiometers

Model Specifications / 3D Features Movement amount Number of resistance elements Mounting style Length of lever / type Center detent Total resistance Resistance taper Endurance

VJ13/23

Entire series is standardized at 9mm wide. Excellent slide operation feeling. Can be compatible with auto dip.

Standard type
15, 20, 30, 45, 60mm

Single unit / Dual unit

Vertical type

10C, 15C, 5B, 15B, 10CP, 15CP

With / Without

10kΩ, 20kΩ, 50kΩ, 100kΩ

B, 10A, 15A, 15C

15,000 cycles

There is no product that corresponds to the specified application.

Trimmer potentiometers Chip Trimmer Potentiometers

Model Specifications / 3D Features Size Adjustment method Stopper Total resistance

TMC2K2J

Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

2mm

-

Without

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

TMC3K

Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

3mm

Manually operated

Without

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

TMC3KJ

Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

3mm

Automatic

Without

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

TMC3K3B

Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

3mm

Both sides

-

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

TMC3K4J

Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.

3mm

Automatic

With

100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ

There is no product that corresponds to the specified application.

Trimmer potentiometers Trimmer Potentiometers

Model Specifications / 3D Features Size Mounting method Total resistance

ZRV6K PV/PH

With a printed carbon resistance element and for a wide variety of markets and applications.

6mm

Vertical / horizontal

100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 30kΩ, 50kΩ, 100kΩ, 200kΩ

VM5CK-PV

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

5mm

Vertical type

100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

VM6CK-PV(1S)/PH(1S)

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

6mm

Vertical / horizontal

100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

TM64K2(PV)/(PH)

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

6mm

Vertical / horizontal

100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

TM8K V2/H1

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

8mm

Vertical / horizontal

200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

TM10K(PV)/(PH)

Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.

10mm

Vertical / horizontal

100Ω, 220Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ

There is no product that corresponds to the specified application.

Encoders Rotary Encoders

Model Specifications / 3D Features Size Mounting style Number of positions Code

XRE0125

Compact, high performance signal switch. Smooth rotation feeling due to the use of film.

12mm

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

XRE0126

Compact, high performance signal switch. Smooth rotation feeling due to the use of film.

12mm / with push switch

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

XRE0127

Compact, high performance signal switch. Smooth rotation feeling due to the use of film. Withstand ambient temperature of 85℃.

12mm

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

XRE0128

Compact, high performance signal switch. Smooth rotation feeling due to the use of film. Withstand ambient temperature of 85℃.

12mm / with push switch

Vertical type

24 pulses / 360 ° (24 PC type),
12 pulses / 360 ° (12 PC type)

INB (2 Bits) / 24 clicks,
INA (2 Bits) / 12 clicks

REB16

Compact, high performance signal switch. With Push SW included.

16mm

Vertical type

24 pulses / 360°

INA, INB (2Bits)

There is no product that corresponds to the specified application.

Fixed resistors Metal Oxide Film Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RNM

Incombustible paint insulation type metal film resistor. Do not burn due to self heating or external flame. Low resistance item.

0.5W, 1W, 2W, 3W

0.22Ω - 9.1Ω

±5%, ±10%

RSM

Incombustible paint insulation type. Do not burn due to self heating or external flame.

0.5W, 1W, 2W, 3W

0.2Ω - 120kΩ (E24Series)

±5%

RSM2FB ES

Miniaturized, incombustible paint insulation type. Do not burn due to self heating or external flame. Surface mount.

2W

0.2Ω - 100kΩ (E24Series)

±5%

RSS

Self-standing type with snap-in terminal installed. Improvement of space factor with lightweight and compact type. The inductance component is compact, with excellent high frequency characteristics.

3W, 5W

0.22 to below 10 (E12 Series) 10Ω - 100kΩ(E24Series)

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Current Detection Cement-Filled Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGC□

Incombustible, insulated metal plate resistor. Will not start a fire when overloaded.

2W, 3W, 5W

5mΩ - 1Ω

±2%, ±3%, ±5%, ±10%

RGC□□

Incombustible, insulated metal plate resistor. Will not start a fire when overloaded.

2+2W, 3+3W, 5+5W, 7+7W

10mΩ - 1.0Ω

±2%, ±3%, ±5%, ±10%

RGCH

Incombustible, insulated metal plate resistor. No adhesive required for low-height type vibration.

2W, 5W

5mΩ - 1Ω

±2%, ±5%, ±10%

RGC□Y

Incombustible, insulated metal plate resistor. It is a case with legs that stands straight to a substrate.

2W, 5W, 10W

5mΩ - 1Ω,
10mΩ - 2Ω

±5%, ±10%

RGB2MJ

Incombustible, insulated metal plate resistor. Will not start a fire when overloaded. It is suitable for current detection due to its low resistance. Surface mount.

2W

10mΩ - 50mΩ

±10%

RGG7Y

Incombustible, insulated metal plate resistor. High accuracy current detection with four-terminal structure. Resistance temperature count of 100 ppm/℃ or less. Will not start a fire when overloaded.

7W

3, 5, 7, 10mΩ

±5%, ±2%

There is no product that corresponds to the specified application.

Fixed resistors Cement-Filled Fixed Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGG□

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

2W, 3W, 5W, 7W, 10W, 20W

0.22Ω - 2.7kΩ (E12)

±5%, ±10%

RGGT□

Metal oxide film resistor with incombustible insulation. Will not start a fire when overloaded. High resistance type.

7W, 10W

10Ω - 120kΩ (E12)

±2%, ±3%, ±5%, ±10%

RGB□L

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

2W, 3W, 5W, 7W, 10W, 15W, 20W

0.22Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□PS/PW

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

5W, 7W, 10W, 15W, 20W

0.27Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□HS/HV

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded.

10W, 15W, 20W, 30W, 40W

1Ω - 2.7kΩ (E12)

±5%, ±10%

RGB□FS/FV

Incombustible, insulated wire-wound resistor. Will not start a fire when overloaded. Faston terminal allows electrical connection without soldering.

10W, 15W, 20W, 30W, 40W

1Ω - 2.7kΩ (E12)

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Fusing Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RNF□FB

It is a coated metal film type and usually functions as a resistor. During abnormal overload, it fuses to protect the circuit. Compact and lightweight. Excellent safety due to the use of incombustible paint.

0.25W, 0.5W,
1W, 2W

0.22Ω - 1kΩ
(E24 Series)

±5%, ±10%

RNF□FD

It is a metallic film type enclosed in a magnetic case and functions normally as a resistor. During abnormal overload, it fuses to protect the circuit. Reduces fuming, sound production, smell during fusing operation. Strong insulation properties.

0.5W, 1W

0.22Ω - 1kΩ
(E24 Series)

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Surge Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RMH

With the metal oxide membrane, the circuit damage by the rushing into current such as inducement thunders is reduced. UL, BSI, VDE certified.

0.25W, 0.5W, 1W

56kΩ - 33MΩ
(E12 Series)

±5%

RKF

Wire wound + incombustible paint type. It can be used as a lightning surge and inrush prevention resistance.

3W, 5W

20Ω

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Surge Absorbers

Model Specifications / 3D Features Type

DSAR

Reduce the circuit damage by the rushing into current such as inducement thunders.
UL certified.

Vertical / horizontal

There is no product that corresponds to the specified application.

Fixed resistors Thermal Fuse Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RGD(U)□(M)

Integrated unit of winding resistance and thermal fuse. By virtue of the built-in thermal fuse being adjacent to the resistor element, the dispersion in fusing characteristics has been minimized and assures a high stability performance. Excels in surge withstanding capabilities. UL certified product.

1.4 - 5.2W

0.22Ω - 1.8kΩ

±5%, ±10%

There is no product that corresponds to the specified application.

Fixed resistors Balance Resistors

Model Specifications / 3D Features Rated power Total resistance Resistance tolerance

RMP1607

Type to screw into heat sink. Specifications, types, etc are compatible with custom products.

20W

1kΩ - 400kΩ

±1%, ±2%, ±5%

There is no product that corresponds to the specified application.
