Product information Trimmer potentiometers

close

Chip Trimmer Potentiometers

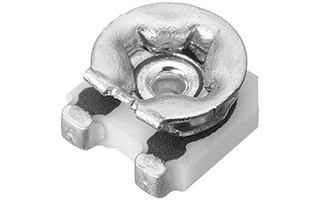

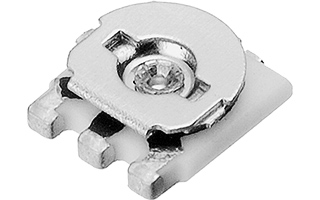

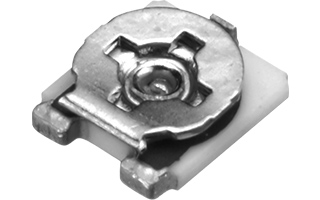

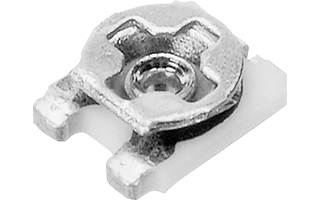

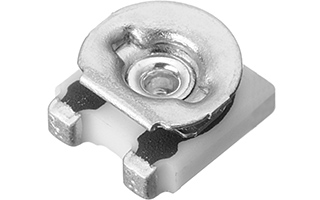

TMC2K2J TMC3K TMC3KJ TMC3K3B TMC3K3R TMC3K4J TMC3K5 TMC3K6J
Model TMC2K2J TMC3K TMC3KJ TMC3K3B TMC3K3R TMC3K4J TMC3K5 TMC3K6J
Features Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. For cars. Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support.
Size 2mm 3mm 3mm 3mm 3mm 3mm 3mm 3mm
Adjustment method Manually operated Automatic Both sides Back Automatic Manually operated Automatic
Stopper Without Without Without Without With Without Without
Total resistance
  • 100Ω, 220Ω, 470Ω
  • 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ
  • 1MΩ, 2.2MΩ
  • 100Ω, 220Ω, 470Ω
  • 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ
  • 1MΩ, 2.2MΩ
  • 100Ω, 220Ω, 470Ω
  • 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ
  • 1MΩ, 2.2MΩ
  • 100Ω, 220Ω, 470Ω
  • 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ
  • 1MΩ, 2.2MΩ
  • 100Ω, 220Ω, 470Ω
  • 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ
  • 1MΩ, 2.2MΩ
  • 100Ω, 220Ω, 470Ω
  • 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ
  • 1MΩ, 2.2MΩ
  • 100Ω, 220Ω, 470Ω
  • 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ
  • 1MΩ, 2.2MΩ
  • 100Ω, 220Ω, 470Ω
  • 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ
  • 1MΩ, 2.2MΩ
Specifications / 3D Catalog259KB Specifications106KB Catalog259KB Specifications96KB Catalog259KB Specifications96KB Catalog259KB Specifications80KB Catalog259KB Specifications75KB Catalog259KB Specifications87KB Catalog259KB Specifications80KB Catalog259KB Specifications102KB

Trimmer Potentiometers

ZRV6K PV/PH VM5CK-PV VM6CK-PV(1S)/PH(1S) TM64K2(PV)/(PH) TM8K V2/H1 TM10K(PV)/(PH)
Model ZRV6K PV/PH VM5CK-PV VM6CK-PV(1S)/PH(1S) TM64K2(PV)/(PH) TM8K V2/H1 TM10K(PV)/(PH)
Features Molding resin. Life 50 cycles. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type.
Size 6mm 5mm 6mm 6mm 8mm 10mm
Mounting method Vertical / horizontal Vertical type Vertical / horizontal Vertical / horizontal Vertical / horizontal Vertical / horizontal
Total resistance
  • 100Ω-200kΩ
  • 100Ω, 200Ω, 500Ω
  • 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ
  • 1MΩ
  • 100Ω, 200Ω, 500Ω
  • 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ
  • 1MΩ
  • 100Ω, 200Ω, 500Ω
  • 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ
  • 1MΩ
  • 200Ω, 500Ω
  • 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ
  • 1MΩ
  • 100Ω, 220Ω, 500Ω
  • 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ
  • 1MΩ
Specifications / 3D Specifications201KB Catalog131KB Specifications93KB Catalog131KB Specifications190KB Catalog131KB Specifications125KB Catalog131KB Specifications122KB Catalog131KB Specifications108KB
